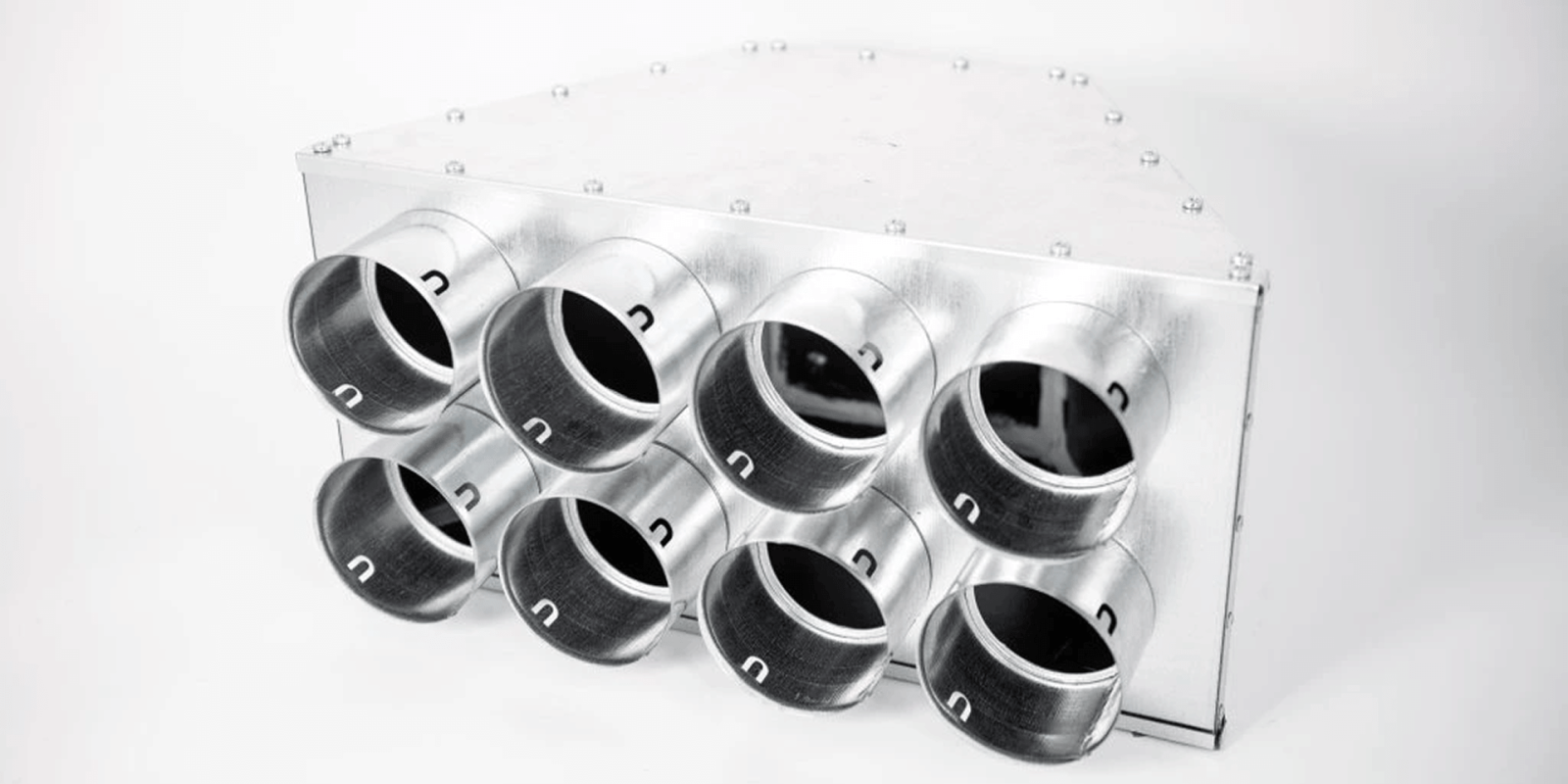

Novinka: rozdělovač vzduchu RT2RQ-8×90-160 pro flexibilní potrubí DALFLEX

This model delivers greater versatility and easier installation while maintaining precise workmanship and long service life.

High-quality materials and durability

The box is made from double-sided galvanised steel sheet with a thickness of 0.5 mm and a minimum zinc coating of 275 g/m², ensuring excellent corrosion resistance even during long-term use. The internal insulation is based on closed-cell synthetic rubber, providing excellent acoustic and thermal insulation properties. The sealing rings are made of black EPDM 60 rubber with a hardness of ShA 60° and a density of 1.22 g/cm³.

All materials used comply with REACH and ROHS standards and contain no lead, cadmium, mercury, or brominated compounds.

Precision, compatibility and easy installation

The RT2RQ-8×90-160 distribution manifold is designed for maximum compatibility with standard duct systems:

• DN 160 outlet for SPIRO duct connection (ø 158 mm)
• Eight DN 90 outlets for DALFLEX flexible ducting
• Dimensional tolerances according to ČSN ISO 2768-1
• Box weight only 4.0 kg

The package includes sealing rings, mounting brackets and anti-slip locking clips, simplifying installation and ensuring secure duct connection.

For efficient and quiet air distribution

The new RT2RQ-8×90-160 model is an ideal solution for heat recovery ventilation systems where low pressure loss, reliable sealing and easy installation are essential. Thanks to its precise construction and high-quality materials, it provides long-term stability and maintenance-free operation even in demanding conditions.
